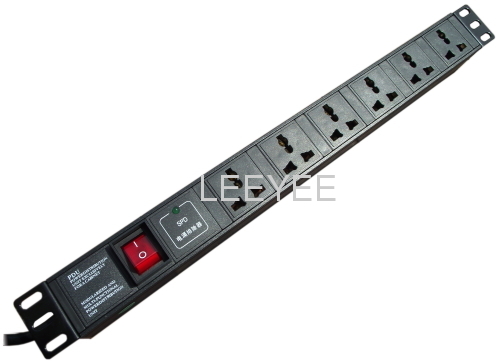

Six-socket over-loading protection and lightning-proof type LY29 manufacturer from China Shanghai Leeyee electric co.,ltd

Six-socket over-loading protection and lightning-proof type

Payment Terms:	T/T,L/C,WU,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LY29

Production Capacity: 6000PCS/month

Delivery Date: as to the order

Brand Name: LEEYEE

Means of Transport: Ocean,Land,Air,

Packing: standard package

Application: Residential / General-Purpo...

website: http://www.lyspd.com

1.Lightning proof type
2.Four socket and six socket
3.ISO9001

Productdescription:

LY29 series multi-function lightning proof socker are suitable for threegrade power system that has single-phase and three-wire&single-phase andtwo-wire socket type which provided with the commo&different protectionmode,it makes surge protective device and power socket perfectintegration,applicable for the terminal device of power system,widely use for ITsystem and household appliance etc.Resistance and Surge Protective Device insidethat discharge current Imax 10KA(8/20),the normal working would be displayed byred lamp.The red lamp will turn off when the Chip is bad and invalidation,Bseries lightning-proof socket is leakage protection type,it can efficientlyprevent human electric shocking,improve the electric device runningsafely.LY29Z12-B\LY29Z12-A type have the function of over-loadingprotection,there is a black reset switch on side,to protective your electricdevice ,please connected using multi-strand 4mm2copper core according to thesymbol(L,N).

LY2910-A	Four-socket Lightning-proof Type
LY2910-B	Four-socket Leakage Protection and Lightning-proof Type
LY2911-A	Six-socket Lightning-proof Type
LY2911-B	Six-socket Leakage Protection and Lightning-proof Type
LY2912-A	Six-socket Over-loading Protection and Lightning-proof Type
LY2912-B	Six-socket Leakage Protection,Overloading Protection and Lightning-proof Type

Main Technical Parameters:

Model Technical Parameters	LY29 10-A(B)	LY29 11-A(B)	LY29 12-A(B)
Rate Operating Voltage Uc(V~)	230V/50Hz
Maximum Continuous Operating Voltage Uc(V~)	275,320
Rate Operating Current(V)	10A
Rate Horse Power(W)	2500w
Maximum Discharge Current Imax(8/μ20μs)kA	10kA(L-N\L-PE\N-PE)
Voltage Protection Level(V~)kV	<1.2V(L-N,L-PE),<500V(N-PE)
Inside Thermal Fuse	120°C10A
Back-up Fuse Recommend	16A
